How Permanent Jewelry Artists Are Protecting Their Eyes

When I first started welding permanent jewelry, I wasn’t as consistent with eye protection as I should’ve been. I’d go back and forth, sometimes wearing my glasses and other times just blinking through the flash like it was no big deal. The pulse arc welder is so fast that it’s easy to feel safe. One tiny zap and it’s over in a split second. No big deal, right?

The more I welded, the more I realized my current comfort wasn’t worth risking long term damage to my eyesight. The flash might be brief, but the possibility of flash burn or even permanent vision issues is very real. I had to shift my mindset from “this feels fine” to “this needs to be safe.”

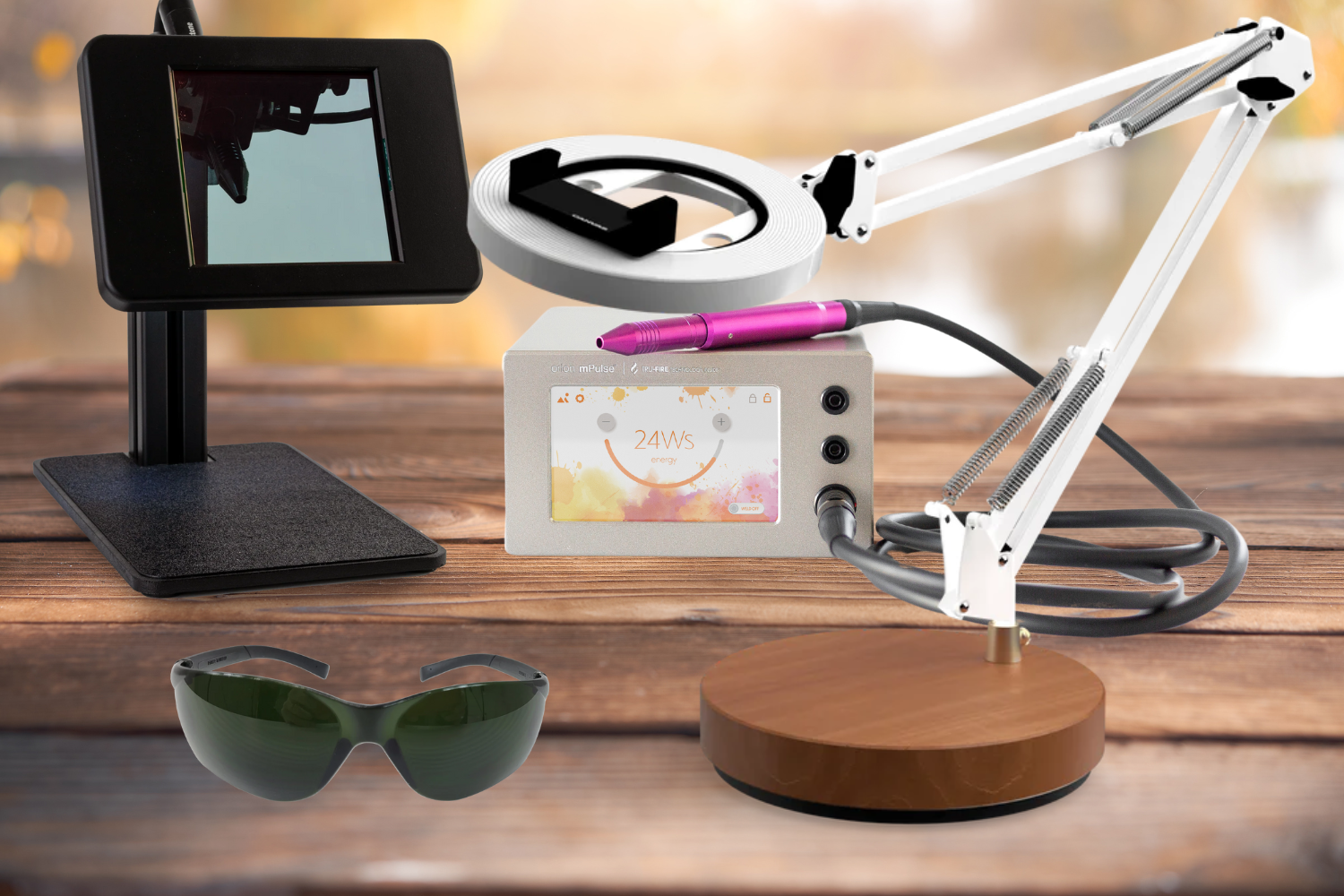

To help you choose the right equipment, I’m sharing the eye protection methods I’ve personally used, including my favorite hack using my phone, plus a few popular upgrades that successful permanent jewelry artists are loving right now. If you’re brand new to welding or finally ready to take eye safety more seriously, here’s how you can protect your vision without slowing down your workflow.

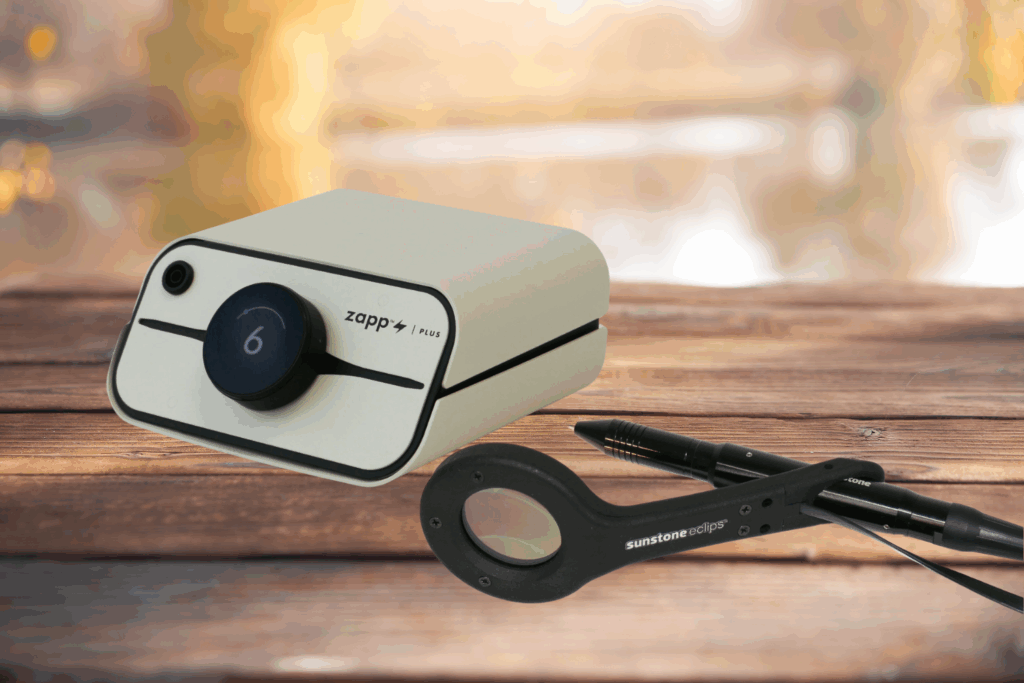

1. Sunstone Eclips™ Auto Darkening Lens with Magnification (Newest Favorite)

If you’ve ever watched that quick pulse of light from your welder and thought, “Eh, it’s fine, I barely even noticed it,” you’re not alone. I used to weld that way too until I started taking my eye health seriously.

That’s where the Sunstone eclips™ comes in. It’s the ultimate tool for eye protection and precision for permanent jewelry artists, and once you try it, you’ll wonder how you ever welded without it.

This ultra portable, handheld auto darkening lens slides right onto your welding stylus. It detects the weld flash and automatically darkens at that exact moment, shielding your eyes instantly without you needing to blink, flinch, or guess.

The Sunstone eclips™ is the first of its kind to offer built in 4x magnification. It makes a huge difference when you’re working with tiny jump rings or trying to nail a precise weld. Everything comes into perfect focus, and you can actually see the exact point where your stylus meets the metal.

This permanent jewelry eye protection was designed with mobile artists in mind. The whole tool is lightweight, compact, and easy to travel with. You can bring it from client appointments to pop up booths without dragging around extra gear. It clips onto your stylus and moves with you, with no bulky microscope required.

A few more key features:

• A clearer glass lens without the usual dark green tint, so your view stays crisp before, during, and after the weld.
• A view window that’s just right, 1.5 inches wide for clarity without the bulk.
• Shade #3 visibility when undarkened, which is super easy to see through as you set up your weld
• Shade #12 when darkened, offering 150x darker protection than OSHA’s minimum standard.
• You also get a removable magnification lens, 2800K white light LED, and a 7-foot flat cable that won’t tangle or get in the way.
• Bonus: if you’re using it with the Orion mPulse® 2.0 or Zapp Plus® 2, the built-in LED is dimmable, too.

The Sunstone eclips™ tool is designed to keep your eyes safe and elevate your craftsmanship, whether you’re brand new or have dozens of events under your belt. It’s a true game changer and, honestly, one of the smartest investments you can make in your welding setup.

Related: Permanent Jewelry Training Course Reviews

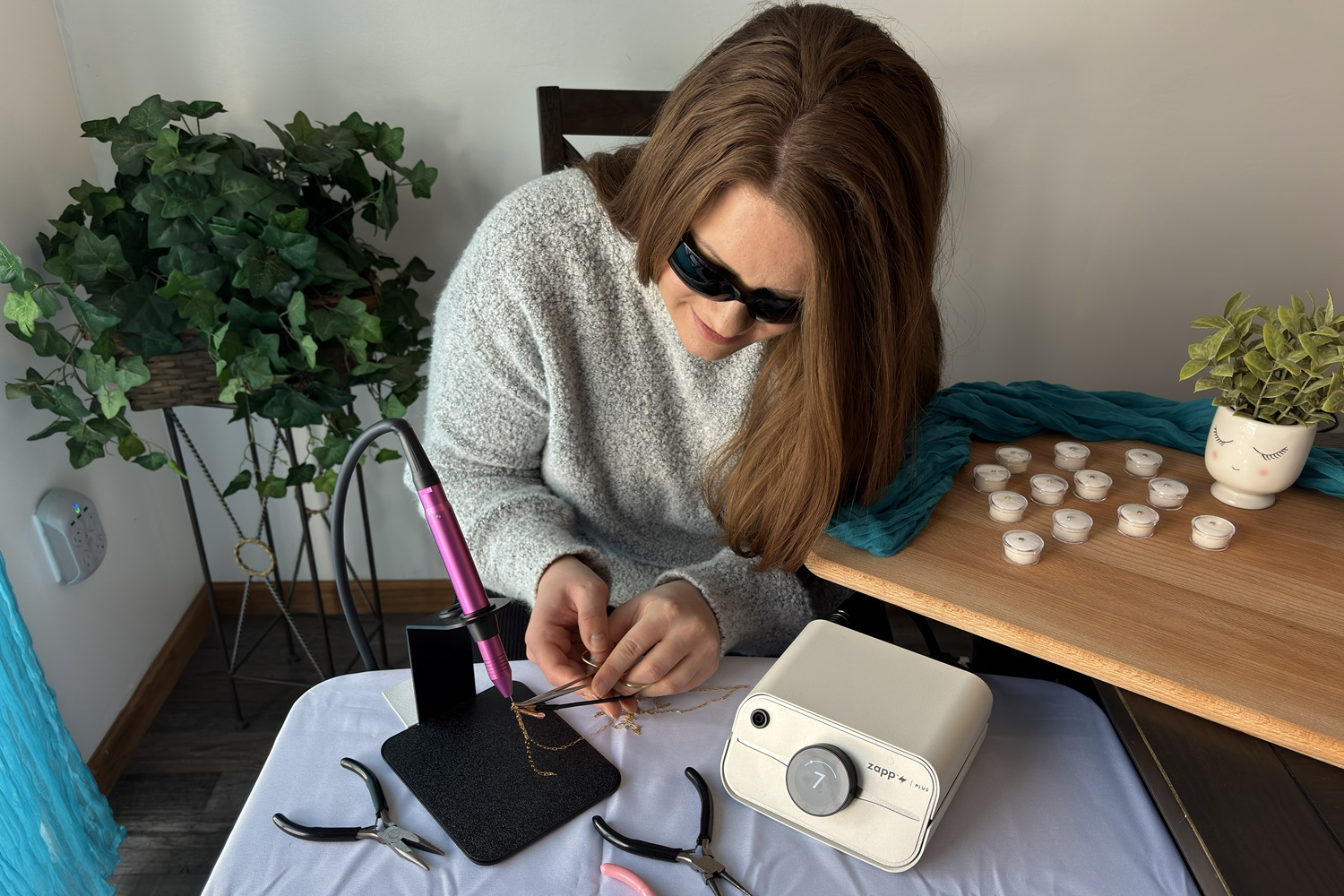

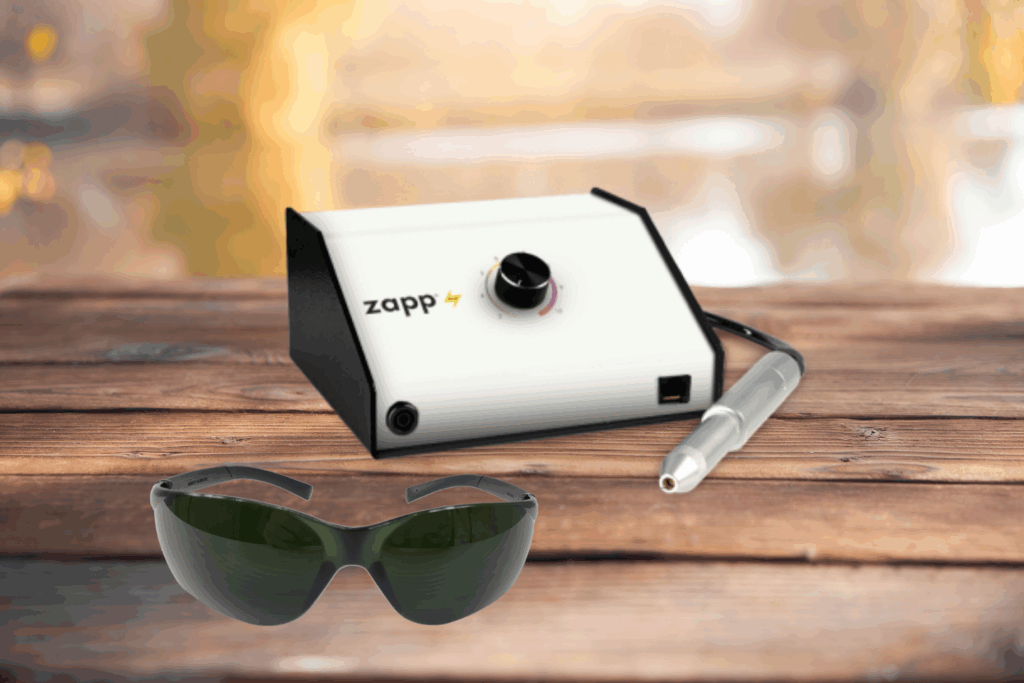

2. IR Shade 5 Glasses (Old Reliable)

If you’re looking for a simple, affordable way to protect your eyes while you weld permanent jewelry, 5 IR lens safety glasses are a solid starting point. This option isn’t anything fancy, but it gets the job done.

Safety glasses are lightweight, easy to throw on, and you can usually grab a pair for under $20, or they come standard in most permanent jewelry starter kits. IR Shade 5 glasses block infrared light well enough to keep your eyes from taking the brunt of the flash during a weld, which is why they’ve been the go to for beginner artists or anyone on a tight budget.

The tradeoff with glasses is that they don’t offer any magnification, and depending on your lighting and the size of your links, it can be tough to get a clear view of your chain. You’ll probably find yourself lifting them up to check placement or repositioning your stylus more than you’d like.

That said, I still keep two pairs of 5 IR lens safety glasses in my kit. They’re great to have as a backup, and they’re a safe choice when you’re just practicing welds or doing quick demos. You can also clean them between uses and let your customers wear them to safely watch you weld. Just don’t expect to see tiny jump rings or delicate chains with perfect clarity, since they’re protective but not precision focused.

Related: Best Permanent Jewelry Welders Reviewed

3. Auto-Darkening Lenses (Only for Some welders)

Auto-Darkening Lenses (ADLs) have been a staple in the welding world for years, and they’ve made their way into the permanent jewelry industry with good reason. These handy tools automatically darken at the moment of a weld, giving your eyes protection right when you need it without interrupting your flow.

Please remember that not all auto-darkening lenses work with every welder.

If you’re using an unbranded welder, you know, the ones sold on Amazon or through random third party websites, it won’t connect to an auto darkening lens at all. These machines often lack the ports or compatible signals needed to trigger the lens, so you’ll need to rely on standalone protection like 5 IR lens safety glasses or a magnification shield setup.

If you have a Sunstone welder, you’ll want to stick with Sunstone’s own Auto-Darkening Lens which includes either the traditional size or the upgraded version with a 4×6 inch viewing area. Sunstone lenses are engineered specifically to sync with their machines, including the Orion mPulse® 2.0 and Zapp Plus® 2. The benefit of this option is a smooth, seamless reaction every time you spark a weld.

The Helix welder by Pepetools also has its own optional auto-darkening lens. It’s a reliable option that many artists swear by for comfort and protection. If you’re a Helix user, you’ll need to stick with the equipment designed for that machine to ensure proper function and visibility.

Before you shop for an Auto-Darkening Lens, make sure to check what type of welder you have. If your machine doesn’t support one, you’ll need to explore other protective options. But if it does, investing in a compatible ADL is one of the best moves you can make for your comfort, visibility, and long-term eye health.

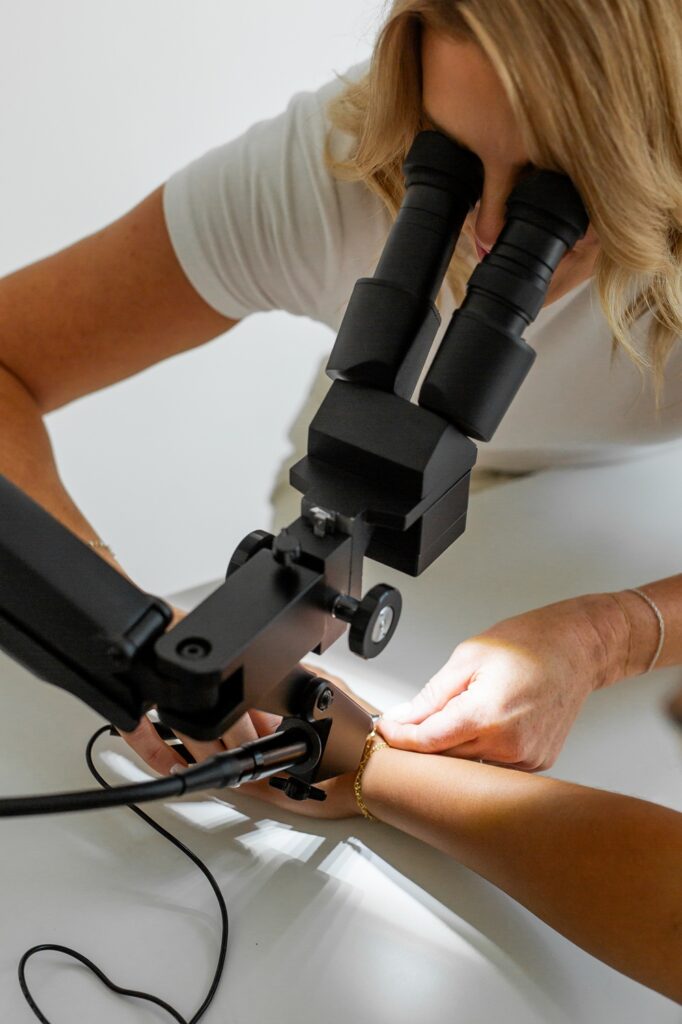

4. The PJ Scope (for Sunstone Machines Only)

The PJ Scope is a self standing, transportable microscope designed to pair seamlessly with Sunstone’s permanent jewelry welders like the Orion PJ, Orion mPulse, Zapp, and Zapp Plus. It’s made for artists who want better visibility, built in eye protection, and a more polished setup without complicating their workflow.

If you’re tired of squinting at tiny jump rings or relying on makeshift magnification, the PJ Scope brings everything into clear focus with 5x magnification. You can see exactly where your stylus meets the metal, which makes cleaner, more confident welds much easier to achieve.

With the PJ Scope, eye safety is handled automatically. The built in optical shutter reacts instantly during a weld, blocking harmful flash exposure so your eyes stay protected without you having to think about it. No blinking or guessing when the flash will happen, just consistent protection while you work.

One of the biggest advantages is the self standing base. There’s no clamp required, which makes setup fast and flexible at pop ups, markets, and private events. The compact footprint sits securely on almost any flat surface, even when space is limited.

If you want clearer visibility, built in eye protection, and a professional looking setup that works anywhere you do, the Sunstone PJ Scope is a solid upgrade for serious permanent jewelry artists.

5. My Unconventional Hack: Phone + Magnification App

This is my go-to when I want quick, easy eye protection that works well with any setup.

Sometimes you just need something simple that works. And for me, that’s using my phone and a magnification app. No need for a special lens or dark glasses. Just your phone and a clear view of what you’re doing.

Here’s how I do it: I open a magnification app (there are plenty of free ones that work great). Then, I position my phone between my eyes and the weld, using my Canvas lamp as the perfect adjustable phone holder and light source. Finally, I watch the weld happen right on the screen in real time.

It works because your phone’s screen naturally acts as a buffer. The flash from the weld doesn’t hit your eyes directly, and you get the added bonus of magnification and light, which is especially helpful for those tiny chains and jump rings.

This hack is amazing when you’re at vendor events or working a pop-up booth. You don’t always have the luxury of bringing your full setup, but your phone is always with you, and this method keeps things quick, portable, and safer for your eyes.

Related: Canvas Lamp Review: Best Light for Permanent Jewelry Welding

Do You Really Need Eye Protection?

It’s a fair question, and one that a lot of new artists ask. Pulse arc welders don’t give off the same kind of blinding light as industrial TIG or MIG machines. The flash is tiny, and because the weld only lasts a fraction of a second, many artists assume it’s safe to look directly at it.

That assumption is exactly why so many people skip eye protection altogether. And yes, you can weld a few pieces without anything over your eyes and probably feel fine in the moment. But just because you don’t feel the effects right away doesn’t mean your eyes aren’t being affected.

Pulse arc welders still emit intense bursts of light, primarily in the infrared and ultraviolet (UV) spectrum. That quick spark may seem harmless, but over time, repeated exposure can lead to eye strain, fatigue, and in worst case scenarios, flash burn or permanent retinal damage.

Plenty of artists choose to risk it. I won’t be one of them. And I won’t recommend you go that route either. You only get one set of eyes. I choose to protect my long-term vision and would only ever suggest you take the safe route and do the same. Whether that means using a high-end lens or a simple workaround, just make sure you’re using something. Your eyes are worth it.

Your Eyes Deserve Just as Much Attention as Your Chains

Eye protection is one of those things many artists overlook in the beginning, but it quickly becomes a non negotiable once you understand the risks. A single weld might not seem like a big deal, but repeated exposure adds up, and your eyes won’t warn you until the damage is already done.

Every artist has a different setup, so the right solution depends on what kind of welder you use and how mobile your business is. If you use a Sunstone Engineering welder, you’ll get the best results with one of their compatible auto-darkening lenses, a handheld Eclips, or the PJ Scope. If you use the Helix, Pepetools has its own ADL system that’s designed to sync with their machine. If you’re still using a basic or unbranded welder, standalone eye protection like 5 IR lens safety glasses or a creative solution like a magnification app can give you a safer start until you upgrade.

Protecting your eyes involves so much more than your comfort in the moment. It ensures your long-term ability to do precise work and build a sustainable permanent jewelry business. As your business grows, so should your safety practices. Keep testing what works best for you, and don’t treat eye protection like an afterthought. It’s part of what sets professionals apart.
